V-Sol 1XPON+4GE+1USB3.0+Wi-Fi 6 HGU ONT
R 1,199.00

South African delivery: R270 for orders below R2,500. Free delivery from R2,500. Delivery times and details

VAT included. Shipping calculated at checkout.
Available to order

When available, this product is supplied from stock held by our South African suppliers rather than at Dawin. Allow 1 business day for processing after verified payment plus 5 business days for delivery to a South African address. Prices include VAT and applicable import duties. Shipping is R270 for orders below R2,500 and free from R2,500. See the product description for condition, warranty and included accessories. Contact dave@dcmining.co.za with any questions before ordering.

Description

V-Sol 1XPON+4GE+1USB3.0+Wi-Fi 6 HGU ONT.

Specifications

  • PON Interface: 1XPON port(EPON PX20+ and GPON Class B+) SC single mode, SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm(EPON) or -8dBm(GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm

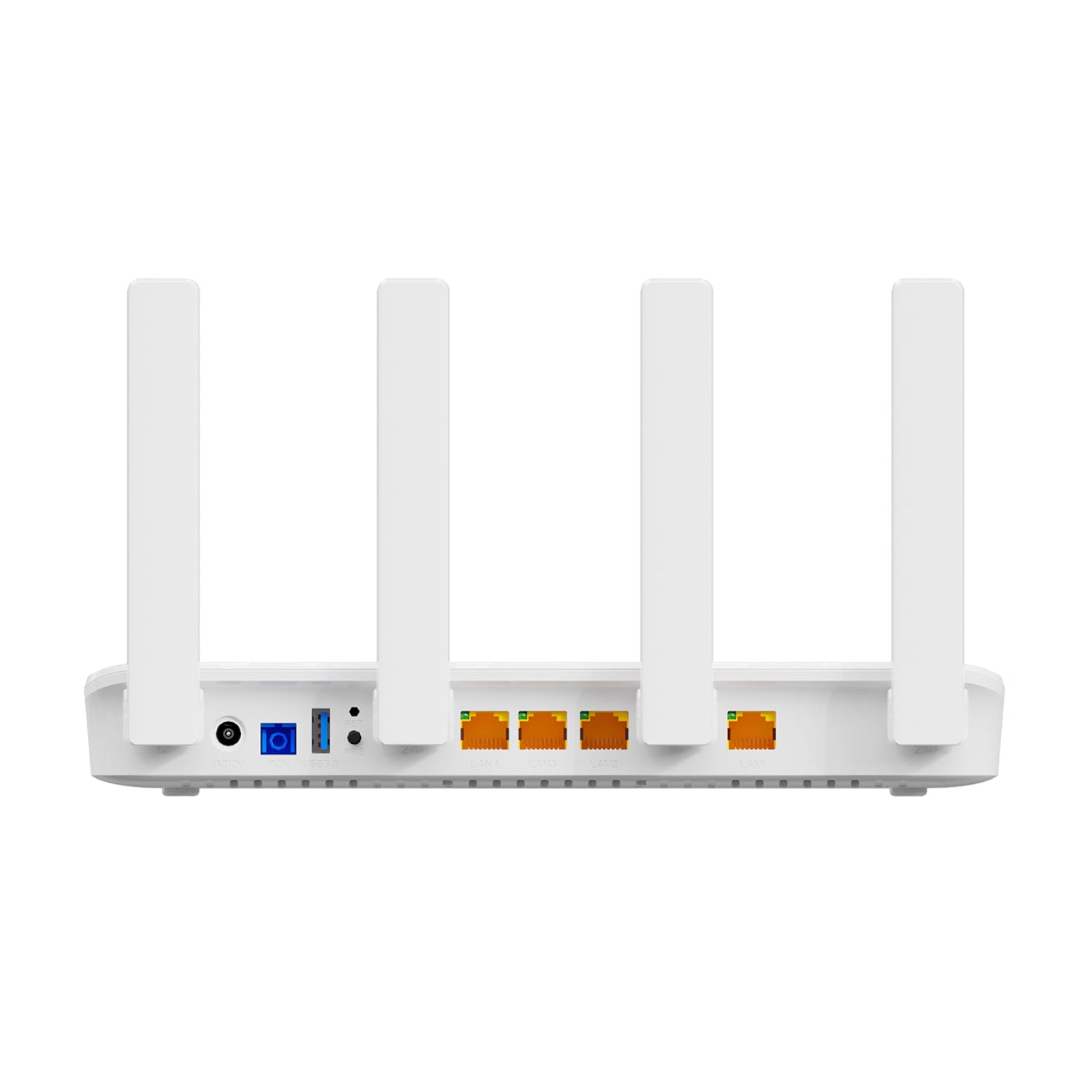

  • User interface: 4×GE, Auto-negotiation,RJ45 ports
  • Antenna: 4 ×5dBi external antennas
  • USB: 1×USB3.0 for Shared Storage/Printer
  • O&M: WEB/TELNET/OAM/OMCI/TR069 Support private OAM/OMCI protocol and Unified network management of VSOL OLT
  • Multicast: IGMP v1/v2/v3, IGMP snooping MLD v1/v2 snooping
  • WIFI: Wi-Fi 6: 802.11a/n/ac/ax 5GHz & 802.11g/b/n/ax 2.4GHz Wi-Fi Encryption:WEP-64/WEP-128/ WPA/WPA2/WPA3 Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM Smart Connect for one Wi-Fi name – One SSID for 2.4GHz and 5GHz dual band Support AX1500/AX1800/AX3000
  • L2: 802.1D&802.1ad bridge, 802.1p Cos,802.1Q VLAN
  • L3: IPv4/IPv6, DHCP Client/Server,PPPoE, NAT, DMZ, DDNS
  • Firewall: Anti-DDOS, Filtering Based on ACL/MAC /URL
  • Operating condition: Operating temp: -10 ~ +55°C Operating humidity:5 ~ 95% (non-condensed)
  • Storing condition: Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed)
