When available, this product is supplied from stock held by our South African suppliers rather than at Dawin. Allow 1 business day for processing after verified payment plus 5 business days for delivery to a South African address. Prices include VAT and applicable import duties. Shipping is R270 for orders below R2,500 and free from R2,500. See the product description for condition, warranty and included accessories. Contact dave@dcmining.co.za with any questions before ordering.
Description

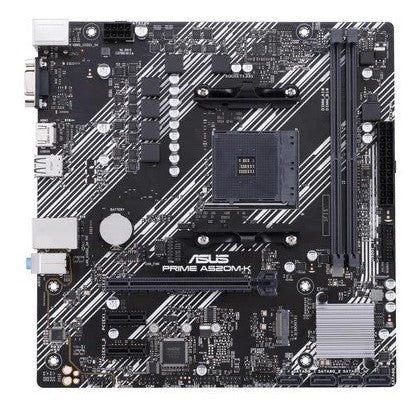

Asus Prime A520M-K AM4 Micro ATX Motherboard – AMD Socket AM4 Supports 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors, Memory 2 x DDR4 DIMM Sockets (up to 64GB), Rear IO Ports 1 x PS/2, 1 x D-Sub, 1 x HDMI, 1 x LAN (RJ45), 4 x USB 3.2 Gen 1 (blue) Type-A, 2 x USB 2.0, 3 x Audio jacks, BIOS 1 x 256 Mbit Flash, Form Factor mATX (22.6cm x 22.1cm), Retail Box, 3 Years Warranty.
Product Overview
The Asus Prime A520M-K is an entry-level micro-ATX motherboard built around AMD’s A520 chipset and AM4 socket, supporting 3rd Gen Ryzen (Zen 2), Ryzen 4000 G-Series, and Ryzen 5000 (Zen 3) CPUs with BIOS updates. It features two DDR4 DIMM slots for up to 64GB dual-channel memory (up to 4600 MHz OC), one PCIe 3.0 x16 slot, four SATA 6 Gbps ports, and a single M.2 slot (PCIe 3.0 x4/SATA) for fast NVMe or SATA SSDs. With HDMI and D-Sub display outputs, Realtek Gigabit LAN, 7.1-channel audio, and a rear I/O panel including four USB 3.2 Gen 1 ports plus two USB 2.0 ports, it’s a cost-effective choice for budget office PCs, home systems, and light gaming builds where CPU overclocking and PCIe 4.0 aren’t required.
Specifications
•Product Code: 90MB1500-M0EAY0 •Description: Asus Prime A520M-K Micro-ATX Motherboard •Form Factor: Micro-ATX •Chipset: AMD A520 •CPU Socket: AM4 Processor Support: •AMD Ryzen™ 5000 Series (BIOS update may be required) •AMD Ryzen™ 4000 G-Series •AMD Ryzen™ 3000 Series (Zen 2) •Memory Support: Up to 64GB DDR4 •Memory Slots: 2 × DDR4 DIMM •Memory Speed: Up to 4600 MHz (OC) •Memory Architecture: Dual Channel Expansion Slots: •1 × PCIe 3.0 x16 •2 × PCIe 3.0 x1 Storage: •1 × M.2 Socket (PCIe 3.0 x4 / SATA) •4 × SATA 6Gb/s ports Graphics Outputs: •1 × HDMI •1 × D-Sub (VGA) USB Ports (Rear): •4 × USB 3.2 Gen 1 •2 × USB 2.0 •Network: Realtek Gigabit Ethernet (10/100/1000 Mbps) •Audio: Realtek 7.1-Channel High Definition Audio •Operating System Support: Windows 10/11 (64-bit)
